Thermacore® Wind Load
THERMACORE® WIND LOAD GARAGE DOOR
The Thermacore® Collection 5745/5765 Series wind load models are thermally efficient garage doors constructed of polyurethane insulation. Both series provide excellent insulation with high R-values (Series 5745 at 12.12 and Series 5765 at 16.22). The premium insulation is also designed for protection against hurricanes, wind damage, and wind-borne debris. Offered in a variety of colors, including bi-directional wood grain, this collection meets stringent building codes and agency while also adding tremendous beauty to your home.
Features & Options

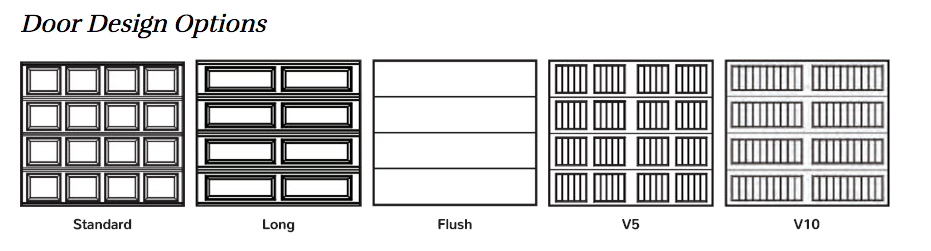

Door Design Options
Standard: Models 901 and 906
Long: Models 902 and 907
Flush: Models 905 and 909
V5: Models 903 and 908

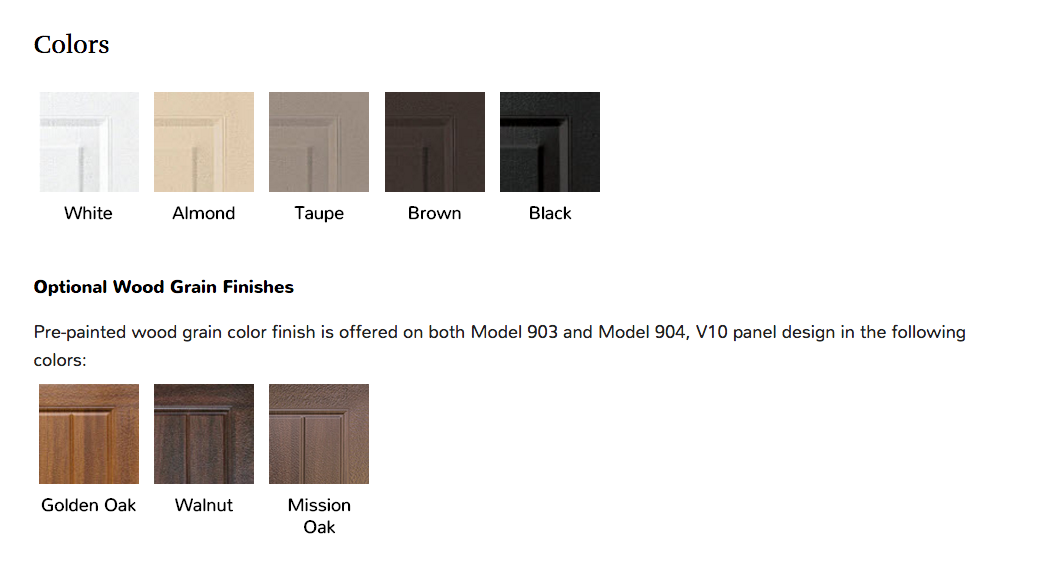

Colors & Features
Actual door color may vary slightly from the digital representation above. Color samples are available by request through your local Overhead Door Distributor.
*Overhead Door does not warrant this product with black finish against warping, rubbing, or other issues associated with thermal bowing. Black finish is not recommended for areas that experience high heat and/or high UV conditions.
Features
Wind Load
Stringently tested to meet wind load requirements
Impact Resistent
With reinforced hardware throughout the door
Designed to meet local building codes
When ordered with proper wind load options
Thermacore® Construction
Provides a continuous layer of foamed-in-place, CFC-free polyurethane insulation sandwiched between two layers of corrosion-resistant steel for maximum thermal efficiency
Polyurethane insulation
Models 901-905: R-value 12.12
Models 906-909: R-value 16.22
R-value: Overhead Door Corporation uses a calculated door section R-value for our insulated doors. The higher the R-value, the greater the insulating properties.
Strong, sturdy doors
Models 901-905: 1 3/8″ thick
Models 906-909: 1 7/8″ thick
Embossed wood-grain texture
Adds beauty, sophistication, and durability
Steel backing
Adds a clean, finished interior appearance
Durable finish
Hot-dipped galvanized steel with two coats of baked-on polyester paint
In-between section seals
Provide superior resistance to the elements
Bulb-type bottom weatherseal
Guards against wind and rain while providing a cushion when the door closes
Warranty
Limited lifetime warranty on door
Limited warranty on residential garage door and opener system when purchased together – features 3 year on components (see warranty for details)
Wind load
Our WindStorm™ wind load rated system is available on selected products in order to meet regulations for a wide range of wind speeds. This makes certain that your door complies with even rigorous building codes and can withstand a variety of wind conditions and speeds, including hurricane-forces.

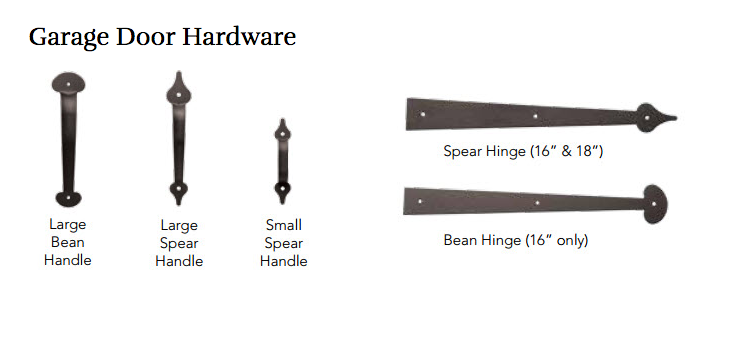

Windows & Hardware

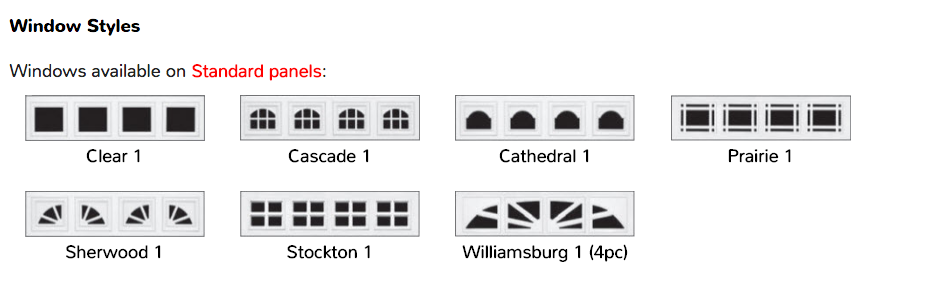

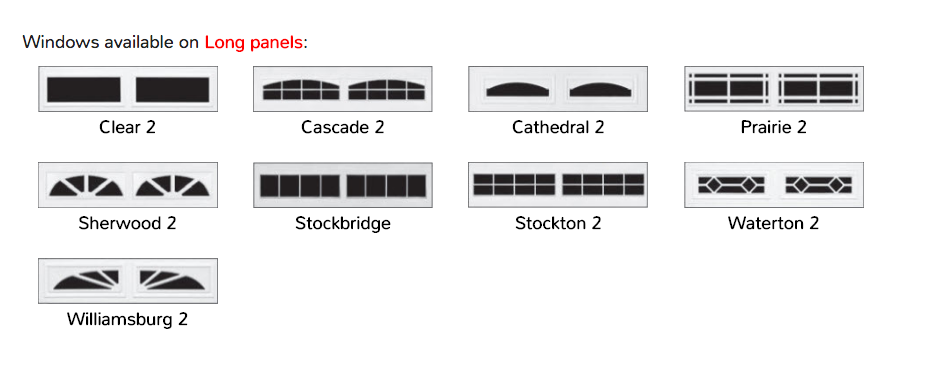

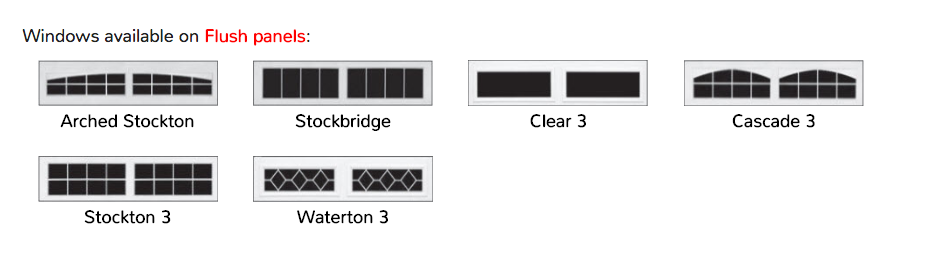

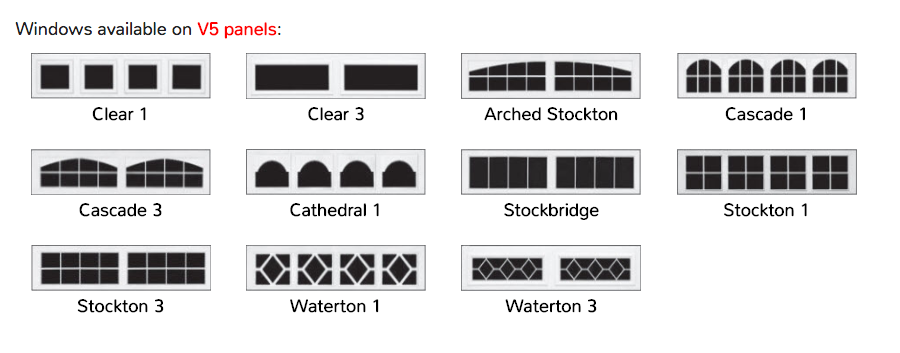

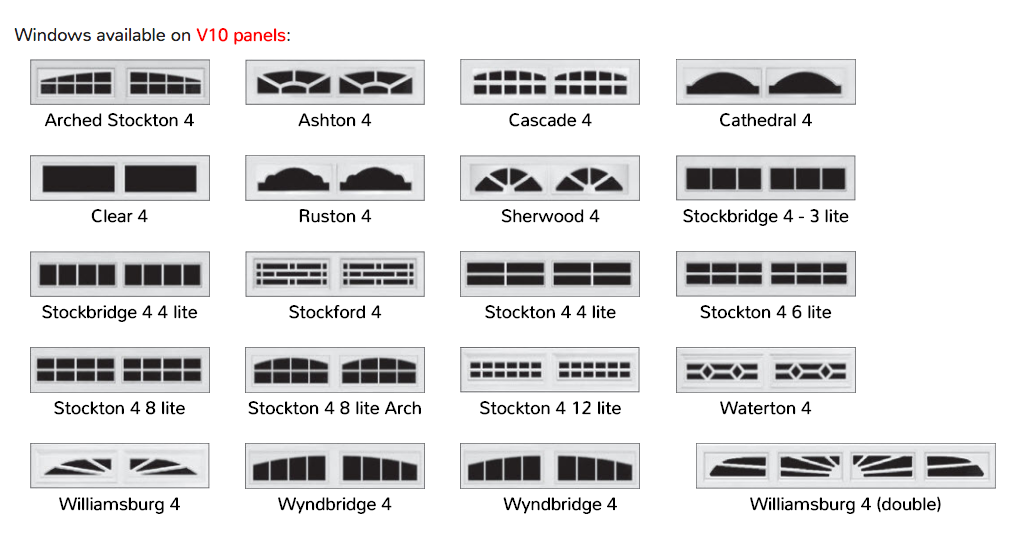

Garage Door Windows
